T6-600/62MAX+/1AC

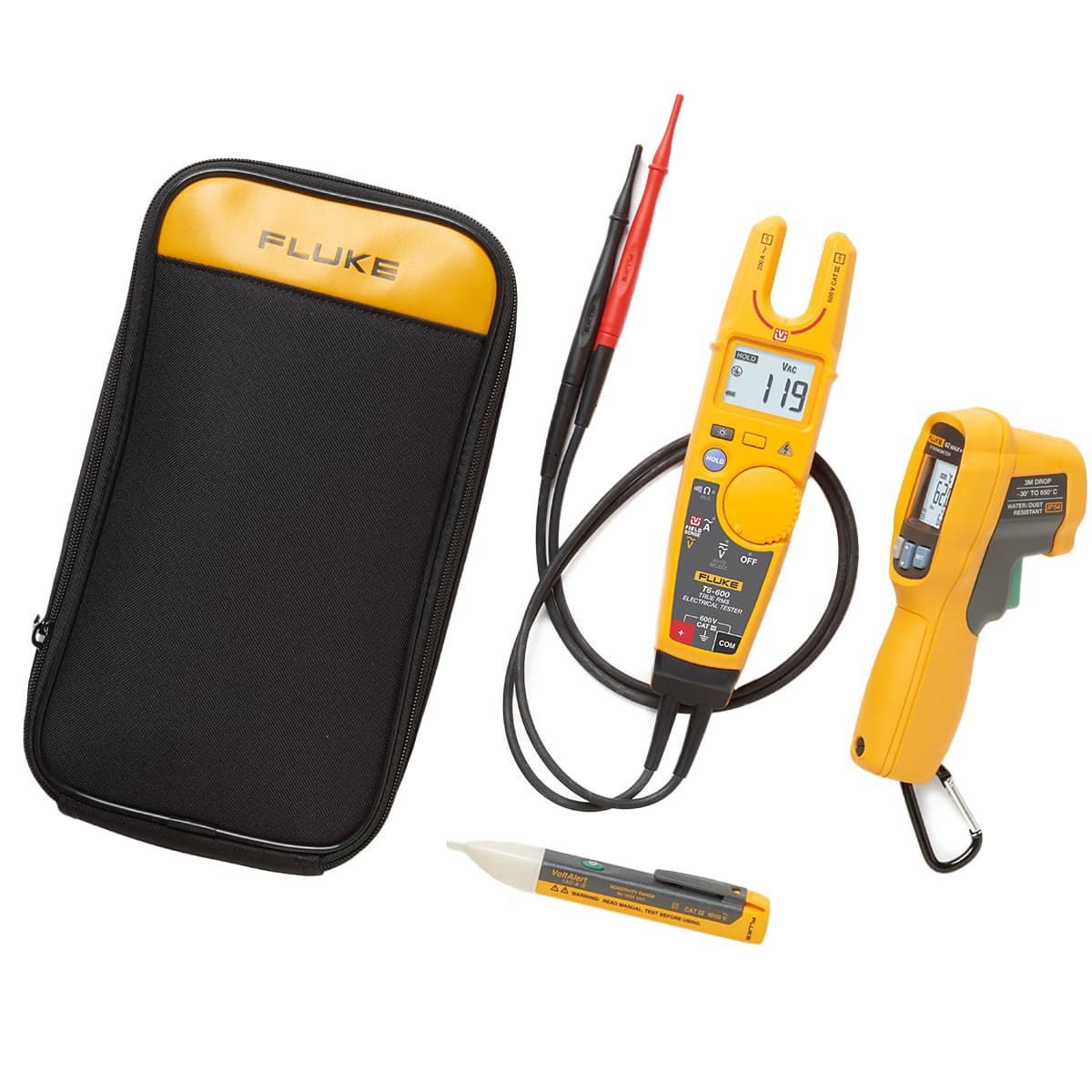

Comprobador T6-600 +Termómetro IR 62MAX+ y detector de tensión 1AC
SKU: 4910400
Caracteristicas principales
- Tecnología FieldSense para la medición de voltaje, corriente y frecuencia de CA sin hacer contacto eléctrico con el voltaje activo
- Identifique las áreas a medir y las pruebas del probador de voltaje para circuitos energizados
Tome medidas de voltaje, corriente y frecuencia de CA sin hacer contacto con el voltaje vivo con el probador T6-600. El termómetro infrarrojo 62 Max + lo ayuda a identificar las áreas a medir y el probador de voltaje 1AC-II prueba los circuitos energizados. Además, este kit es ideal para electricistas y técnicos de HVAC/R.
| Function | Requires test leads | Range | Resolution | Accuracy[1] |
|---|---|---|---|---|
| FieldSense ac voltage true-rms | No | 600 V | 1 V | ±(3% + 3 counts) 45 Hz - 66 Hz[2] [3] |
| FieldSense ac current true-rms | No | 200.0 A | 0.1 A | ±(3% + 3 counts) 45 Hz - 66 Hz |
| FieldSense frequency (Hz) | No | 1 Hz | ±(1% + 2 counts)[3] | |
| Volts ac true-rms | Yes | 600 V | 1 V | ±(1.5% + 2 counts) 45 Hz - 66 Hz |
| Volts dc | Yes | 600 V | 1 V | ±(1% + 2 counts) |
| Resistance | Yes | 2000 Ω | 1 Ω | ±(1% + 2 counts) |
| Safety | 600 V CAT III | |||
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy[3]: FieldSense is specified from 16 V to 100 % of range. | ||||
| Calibration | 1-year calibration cycle | |
|---|---|---|
| Dimensions | 61.1 x 259.3 x 43.8 mm | |
| Jaw opening | 17.8 mm | |
| Weight | 0.35 kg (0.78 lb) | |
| Temperature | Operating | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage | -30 °C to +60 °C (-22 °F to +140 °F) | |
| Altitude | Operating | 2,000 m (6,562 feet) |
| Storage | 10,000 m (32,808 feet) | |
| Relative Humidity | 0% to 90%, 5 °C to 30 °C (41 °F to 86 °F) | |
| 0% to 75%, 30°C to 40 °C (86 °F to 104 °F) | ||
| 0% to 45%, 40°C to 50 °C (104 °F to 122 °F) | ||
| Battery Type and Life | 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense | |
| Temperature coefficient | 0.1 x (specified accuracy) / °C for <18°C or >28 °C | |
| (< 64.4 °F or > 82.4 °F) | ||
| Safety | IEC/EN 61010-1: Pollution Degree 2 | |
| Electromagnetic Environment | IEC/EN 61326-1: Portable | |
